Explosion-proof fuel transfer pumps

Specifications

Ex fuel transfer pumps
Electronic type
220V 50/60Hz
For pumping diesel, kerosene or gasoline
Hose 3/4" 4.5mtrs long


Explosion-proof fuel transfer pumps ( electronic  type )

• ExYTB-60 220V 50/60Hz 0.37KW   2.6A
• Medium: diesel, kerosene or gasoline
• Flow rate: 60L/min.
• Motor Rotate Speed: 2800rpm
• Noise level:≤70dB(A)
• Precision of flowmeter :±1.0%
• End pressure :0.02MPa
• Max.Operating pressure : 0.3MPa
• Ex Marking : Exd Ⅱ BT3

Remarks:

• Turbine flow meter WLL 1"
• Manuel nozzle 3/4"
• Hose 3/4" 4.5 mtrs long
• Cast-iron pump casing, treated against corrosion and paint-finished.
• In-built 100micron filter, easy to clean. Continuous running.
• 1" Threaded joints on pump casing.
• Bypass valve built into pump casing.

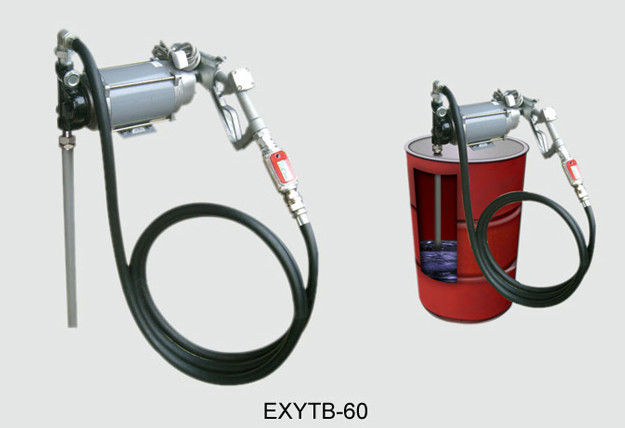

Pictures for ref.
