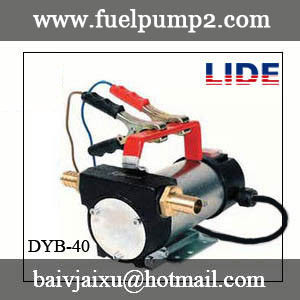

12V/24V Diesel Fuel Transfer Pump

Product Details:

Place of Origin:	China
Brand Name:	LIDE
Certification:	EX
Model Number:	DYB-40

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD 25
Packaging Details:	Carton
Delivery Time:	3~10 days
Payment Terms:	T/T, L/C or Cash
Supply Ability:	2000pcs/month

Contact Now

Detailed Product Description

Theory:	Rotary Pump	Structure:	Vane Pump
Usage:	Oil	Power:	Electric
Standard Or Nonstandard:	Standard	Fuel:	Diesel,Kerosene
Pressure:	Low Pressure	Application:	Metering

LIDEpetroltech

12V/24V Diesel Fuel Transfer Pump

Battery Portable Diesel Transfer Pump

40ltrs Per Min (12v / 24v)

1.Specifications

The Battery DC diesel transfer pump is designed to give you a ready to use portable pumping solution to diesel transfer from drums or small tanks to refuel your vehicles. These product, which include 24v or 12v fueltransfer pumps, are ideal for both agricultural, commercial or plant vehicles and machinery. All models of these Piusi pumps come complete with cable and clips for battery connection and carry handle.

Self-Priming Diesel Transfer Pump

Protection Grade: IP55

Available in 12v/24v

Product models and features

Model number	DYB-40
Thread type	BSPT/NPT 3/4'
Power	120W
Flow rate	0~40L/min
Pump lift	3m

2.Product Details

DYB Series Vane Pump

12V/24V Diesel Fuel Transfer Pump

DYB40-DC12/24 DYB60-AC220/110 DYB80-AC220

Description

Used for fueling diesel, kerosene, not for gasoline
Mechanical seal that guarantees constant reliability and even in
low temperature.
Cast-iron pump casing, treated against corrosion and paint finished.
Vane pump with steel rotor.
Bypass valve built-in.
In-built 100 micron filter, easily accessible for cleaning.
Induction motor with aluminum casing, protection grade IP54
Continuous running.

Model Specification

12V/24V Diesel Fuel Transfer Pump

Technical Specification
Model	DYB60-AC220/110	DYB80-AC220/110	DYB40-DC12/24
Flow Rate	20L-60L/min	20L-80L/min	20L-40L/min
Max. Pressure	3 Bar	3 Bar	3 Bar
Power	AC220V±10% 50Hz AC110V±10% 60Hz	AC220V±10% 50Hz	DC12 DC24
By pass Valve	Yes	Yes	Yes
Strainer	Yes	Yes	Yes
Inlet & outlet	1"	1"	3/4"
Power	375W	550W	120W

Package Data
Model	DYB60-AC220/110	DYB80-AC220/110	DYB40-DC12/24
Packaging	2pcs/ Carton	1pcs/ Carton	2pcs/ Carton
Net Weight	15kgs	12kgs	7kgs
Gross Weight	17Kgs	13kgs	8kgs
Size	49×28×22cm	29×22×25cm	49×28×22cm

ETP Series Electric Transfer Pump Unit

Electric Diesel Fuel Transfer Pump

ETP-60A ETP-80A ETP-40A

Description

It is easy to connect to 1" quick coupling of the drum or tank, with or without flow meter.

Technical Specification
Model		ETP-60A	ETP-80A	ETP-40A
Standard	Pump	DYB60-AC220	DYB80-AC220	DYB40-DC12
	Flow Meter	FM-120L in Liter	FM-120L in Liter	FM-120L in Liter
	Hose	4m	4m	4m
	Manual Nozzle	J60-A	J60-A	J60-A
	Bracket	Yes	Yes	Yes
Option	Pump	DYB60-AC110	DYB80-AC110	DYB40-DC24
	Flow Meter	FM-40G in Gallon	FM-40G in Gallon	FM-40G in Gallon
	Automatic Nozzle	Yes	Yes	Yes
	Bracket	No	No	No
	2M Inlet Pipe	Yes	Yes	Yes
	Filter Check Valve	Yes	Yes	Yes

ETP- B Electric Transfer Pump Unit

ETP- B Type

Description

ETP-B Series Electric Transfer Pump Unit is improved from ETP- XX A series, with complete closed metal case, switch, nozzle holder and automatic nozzle, also manual nozzle, inlet hose for option.

Package Data
Model	ETP-60B	ETP-80B	ETP-40B
Packaging	1pc/carton	1pc/carton	1pc/carton
Net Weight	20Kgs	25Kgs	16Kgs
Gross Weight	21Kgs	27Kgs	17Kgs
Size	60×59×37cm	60×59×37cm	60×59×37cm
