Product Details:

Place of Origin: Zhejiang,China
Brand Name: Lide
Certification: EX
Model Number: ETP50/75-DC12B/24B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit/Units
Packaging Details: Carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C or Cash
Supply Ability: 3600 Set/Sets per Week
Contact Now
Detailed Product Description
Theory: Rotary Pump Structure: Vane Pump
Usage: Oil Power: Electric
Standard Or Nonstandard: Standard Fuel: Gasoline
Pressure: Low Pressure Application: Metering

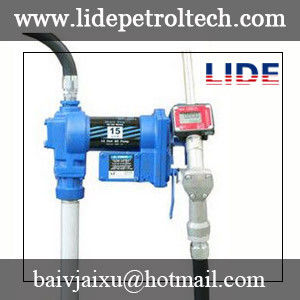

Description



• Used for diesel, gasoline, kerosene, mineral spirits, Stoddard solvent

   and heptane

• Explosion-proof permanent magnet motor with thermal overload

   protection

• Built-in strainer, bypass valve

• Ball bearing construction, no lubrication required

• 3/4” and 1" Hose; 1" manual nozzle

• Nozzle boot that protects against dirt and contamination

• 2" threaded base for tank openings

• Corrosion-Proof section pipe

• Rain proof, water proof

• 30-minute duty cycle/not for continuous operation

Options

• FM-40G meter in gallons or FM-120 meter in liters

• Automatic nozzle



Technical Specification

Model

ETP50-DC12B

ETP75-DC12B

Body Material

Cast Iron

Cast Iron

Maximum flow rate

15GPM(57LPM)

20GPM(76LPM)

Explosion-proof motor

1/4HP

1/4HP

Max. Working Temperature

-26-660C

-26-660C

Inlet

1"NPT

1"NPT

Outlet

3/4"NPT

1"NPT

Threaded tank adapter

2"NPT

2"NPT

Nozzle hanger

Yes

Yes
