| Place of Origin: | Zhejiang,China |
| Brand Name: | Lide |
| Model Number: | DYB50/75-DC12B/24B |
| Minimum Order Quantity: | 1 Unit/Units |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 7-10days |
| Supply Ability: | 3600 Set/Sets per Week |

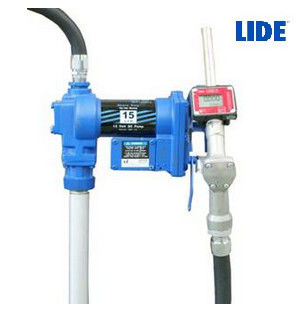

Description
• Used for diesel, gasoline, kerosene, mineral spirits, Stoddard solvent
and heptane
• Explosion-proof permanent magnet motor with thermal overload
protection
• Built-in strainer, bypass valve
• Ball bearing construction, no lubrication required
• 3/4” and 1" Hose; 1" manual nozzle
• Nozzle boot that protects against dirt and contamination
• 2" threaded base for tank openings
• Corrosion-Proof section pipe
• Rain proof, water proof
• 30-minute duty cycle/not for continuous operation
Options
• FM-40G meter in gallons or FM-120 meter in liters
• Automatic nozzle
|
Technical Specification |
||
|
Model |
ETP50-DC12B |
ETP75-DC12B |
|
Body Material |
Cast Iron |
Cast Iron |
|
Maximum flow rate |
15GPM(57LPM) |
20GPM(76LPM) |
|
Explosion-proof motor |
1/4HP |
1/4HP |
|
Max. Working Temperature |
-26-660C |
-26-660C |
|
Inlet |
1"NPT |
1"NPT |
|
Outlet |
3/4"NPT |
1"NPT |
|
Threaded tank adapter |
2"NPT |
2"NPT |
|
Nozzle hanger |
Yes |
Yes |
