| Place of Origin: | Zhejiang,China |
| Brand Name: | Lide |
| Model Number: | M series |
| Minimum Order Quantity: | 1 Unit/Units |
|---|---|
| Packaging Details: | wooden package |
| Delivery Time: | 7-10 days/ as per quantity |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 2000pcs/month |
Diesel fuel flow meter, diesel flow meter, diesel meter
|

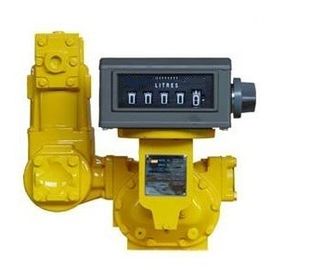

Positive Displacement Flow Meter with Strainer & Air Eliminator |
Characteristics
Excellent stepless adjusting mechanism allows a micro adjustment on the meter;
High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow;
Low maintenance, no metal-to-metal contact in measuring chamber, long life service;
Low pressure loss, a true gravity flow meter;
Accuracy regardless of pressure fluctuations, temperature variation, viscosity. |
| Model |
M-40-1 |
M-50-1 |
M-50H-1 |
M-80-1 |
M-80H-1 |
M-100-1 |
M-100H-1 |
M-150-1 |
M-150H-1 |
| Size |
40mm / 1.5” |
50mm / 2 " |
80mm / 3 " |
100mm / 4 " |
150mm / 6 " |
||||
| Flow Range (L/Min) |
25-250 |
38-380 |
55-550 |
75-750 |
115-1150 |
130-1300 |
170-1700 |
225-2250 |
300-3000 |
| Volume /Rev. |
0.309L |
0.681L |
1.839L |
5.102L |
9.507L |
||||
| Max. Pressure |
10Bar/150PSI |
25Bar/350PSI |
|||||||
| Accuracy |
±0.2% |
||||||||
| Repeatability |
≤0.05% |
||||||||
| Standard Measurement |
Liter / US Gallon/IMP Gallon |
||||||||
| Viscosity |
30SSU~1,500,000SSU |
||||||||
