| Place of Origin: | Zhejiang,China |
| Brand Name: | Lide |
| Model Number: | FMC series |
| Minimum Order Quantity: | 1 Unit/Units |
|---|---|
| Packaging Details: | wooden package |
| Delivery Time: | 7-10 days/ as per quantity |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 5000 Unit/Units per Month |

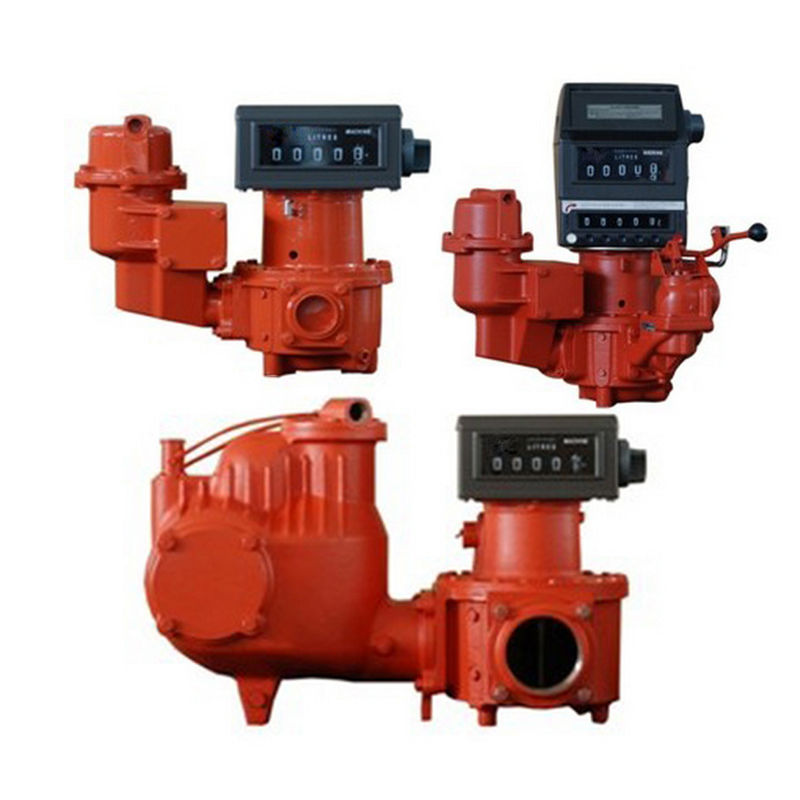

FMC Series PD Rotary Vane Flow Meter |
||
|
FMC-50 Meter with Register, Strainer & Air Eliminator |
Characteristics
|
|
| • |
FMC series PD rotary vane meters are single case, angle-type, rotary vane, positive displacement meters.
|
|
| • |
Superior accuracy and metering for a wide range of products, such as, gasoline, kerosene, fuel oils etc..
|
|
| • |
Compact, versatile design can be readily fit into nearly all installations.
|
|
| • |
Low pressure drop meter results in low meter slippage and thus superior meter accuracy.
|
|
| • |
Long service life, low friction ball bearings, fixed cam-type timing, and rugged construction give sustained accuracy and long time operation.
|
|
|
Construction
|
|
|
FMC-100 Meter with Register, Strainer & Air Eliminator |
 |
|
FMC-50 Preset Meter with Register, |
|
|
Application
|
| Technical Specification | |||
| Model | FMC-50 | FMC-80 | FMC-100 |
| Size | 50mm/2" | 80mm/3" | 100mm/4" |
| Flow Range(L/min) | 38-380 | 75-750 | 150-1500 |
| Max. Working Pressure | 150PSI | ||
| Accuracy | ±0.2% | ||
| Repeatability | 0.07% | ||
| Packaging Data | ||
| Model | FMC-50 | FMC-80 |
| Packaging | 1pc/wooden case | |
| Net Weight | 42kgs | 63kgs |
| Gross Weight | 57kgs | 70kgs |
| Size | 59x34x57cm | 59x34x57cm |
|
2” Air Eliminator & Strainer |
4” Air Eliminator & Strainer |
2” Preset Valve |
