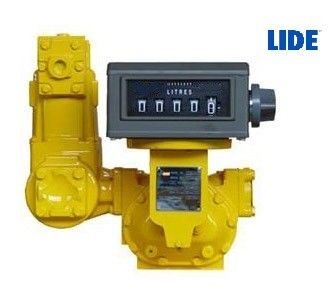

M Series PD Flow Meter

             M-80-1 Meter with Counter                                             M-80-1 Meter with Counter & Strainer

                      M-80-1 Meter with Counter,                                                   M-50-KX-1 Meter with Register Counter,                                                          Strainer&Air Eliminator                                           Preset Counter, Preset Valve, Strainer & Air Eliminator

                  M-50-NX-1 Meter with Preset Counter,
                 Register Counter, Preset Valve, Strainer,                                M-150-A-1 Meter with Counter
                             Air Eliminator & Printer

                   M-80-KPX-1 Meter with Electronic Register,                                    MA-50-CX-10 Meter with Register Counter
                       Strainer,Air Eliminator & Solenoid Valve                                       ,Differential Valve, Strainer & Air Eliminator

Characteristics

• Excellent stepless adjusting mechanism allows a micro adjustment of the meter
• High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
• Low maintenance, no metal-to-metal contact in measuring chamber, long life service
• Low pressure loss, a true gravity flow meter
• Accuracy regardless of pressure fluctuations, temperature variation, viscosity
• Choice of aluminum, cast iron and stainless steel materials of construction

  Application

• refined petroleum products;
• aviation gasolines and jet fuels;
• a wide variety of products such as: liquid sugars, corn syrup, corn sweetners, dextrose, fructose, sucrose, maltose, lactose, corn oil, soy bean oil, cotton seed oil, coconut oil,.
• treated waters (deionized, demineralized, and potable);
• chlorinated solvents and general solvent metering;
• acid pH liquids;
• liquefied petroleum gas(LPG);
• crude oil, also for heated and/or viscous liquids;
• oil or water based latex products, polyester resins, and adhesives (neutral pH), also for metering herbicides and nitrogen fertilizer solutions;
• herbicide;
• sodium hydroxide (caustic) solutions, high sulfur crude oil (LACT and NOD) and other alkaline pH liquids;
• abrasive liquids;
