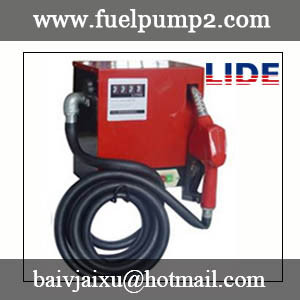

Diesel transfer pump Unit , Closed construction electric transfer assy

Diesel transfer pump Unit , Closed construction electric transfer assy

Diesel transfer pump Unit , Closed construction electric transfer assy

Product Details:

Place of Origin: Zhejiang,China
Brand Name: LIDE
Certification: CE
Model Number: ETP-xxB

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit/Units
Packaging Details: Carton
Delivery Time: 10days
Payment Terms: T/T, L/C or Cash
Supply Ability: 3600 Set/Sets per Month
Contact Now
Detailed Product Description
Theory: Rotary Pump Structure: Vane Pump
Usage: Oil Power: Electric
Standard Or Nonstandard: Standard Fuel: Diesel
Pressure: Low Pressure Application: Metering

ETP-xxB Series Electric Transfer Pump Unit is improved from ETP- XX A series, with complete closed metal case, switch, nozzle holder and automatic nozzle, also manual nozzle, inlet hose for option.



Technical Specification

Model

ETP-60B

ETP-80B

ETP-40B

Standard

Pump

DYB60-AC220

DYB80-AC220

DYB40-DC12

Flow Meter

FM-120L in Liter

FM-120L in Liter

FM-120L in Liter

Hose

4m

4m

4m

Manual Nozzle

J60-A

J60-A

J60-A

Bracket

Yes

Yes

Yes

Option

Pump

DYB60-AC110

DYB80-AC110

DYB40-DC24

Flow Meter

FM-40G in Gllon

FM-40G in Gallon

FM-40G in Gallon

Automatic Nozzle

Yes

Yes

Yes

Bracket

No

No

No

2M Inlet Pipe

Yes

Yes

Yes

Filter Check Valve

Yes

Yes

Yes








DYB Series Vane Pump



12V/24V Diesel Fuel Transfer Pump12V/24V Diesel Fuel Transfer Pump12V/24V Diesel Fuel Transfer Pump

              DYB40-DC12/24                               DYB60-AC220/110                                 DYB80-AC220



Description

Used for fueling diesel, kerosene, not for gasoline
Mechanical seal that guarantees constant reliability and even in
low temperature.
Cast-iron pump casing, treated against corrosion and paint finished.
Vane pump with steel rotor.
Bypass valve built-in.
In-built 100 micron filter, easily accessible for cleaning.
Induction motor with aluminum casing, protection grade IP54
Continuous running.











 Technical Specification

 Model

DYB60-AC220/110
DYB80-AC220/110
DYB40-DC12/24

 Flow Rate

20L-60L/min
20L-80L/min
20L-40L/min

 Max. Pressure

3 Bar
3 Bar
3 Bar

 Power

AC220V±10% 50Hz

AC110V±10% 60Hz

AC220V±10% 50Hz
DC12
DC24

 By pass Valve

Yes
Yes
Yes

 Strainer

Yes
Yes
Yes

 Inlet & outlet

1"
1"
3/4"

 Power

375W
550W
120W



 Package Data

 Model

DYB60-AC220/110
DYB80-AC220/110
DYB40-DC12/24

 Packaging

2pcs/ Carton
1pcs/ Carton
2pcs/ Carton

 Net Weight

15kgs
12kgs
7kgs

 Gross Weight

17Kgs
13kgs
8kgs

 Size

49×28×22cm
29×22×25cm
49×28×22cm






ETP Series Electric Transfer Pump Unit

Diesel transfer pump Unit , Closed construction electric transfer assyDiesel transfer pump Unit , Closed construction electric transfer assyDiesel transfer pump Unit , Closed construction electric transfer assy

                 ETP-60A                                           ETP-80A                                                      ETP-40A

Description

It is easy to connect to 1" quick coupling of the drum or tank, with or without flow meter.

 Technical Specification

Model

ETP-60A
ETP-80A
ETP-40A
Standard
Pump
DYB60-AC220
DYB80-AC220
DYB40-DC12
Flow Meter
FM-120L in Liter
FM-120L in Liter
FM-120L in Liter
Hose
4m
4m
4m
Manual Nozzle
J60-A
J60-A
J60-A
Bracket
Yes
Yes
Yes
Option
Pump
DYB60-AC110
DYB80-AC110
DYB40-DC24
Flow Meter
FM-40G in Gallon
FM-40G in Gallon
FM-40G in Gallon
Automatic Nozzle
Yes
Yes
Yes
Bracket
No
No
No
2M Inlet Pipe
Yes
Yes
Yes
Filter Check Valve
Yes
Yes
Yes








ETP- B Electric Transfer Pump Unit

Electric Diesel Fuel Transfer Pump
                ETP- B Type

Description



ETP-B Series Electric Transfer Pump Unit is improved from ETP- XX A series, with complete closed metal case, switch, nozzle holder and automatic nozzle, also manual nozzle, inlet hose for option.

 Package Data

 Model

ETP-60B
ETP-80B
ETP-40B

 Packaging

1pc/carton
1pc/carton
1pc/carton

 Net Weight

20Kgs
25Kgs
16Kgs

 Gross Weight

21Kgs
27Kgs
17Kgs

 Size

60×59×37cm
60×59×37cm
60×59×37cm
