| Place of Origin: | Zhejiang,China |
| Brand Name: | Lide |
| Model Number: | Y2 series |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 7-10days |
| Supply Ability: | 2000pcs/month |
| Type:: | Asynchronous Motor | Frequency:: | 50Hz, 60Hz |
|---|---|---|---|
| Output Power:: | 0.12kw To 15kw | Protect Feature:: | Totally Enclosed |
| Phase:: | Three-phase | Certification:: | CCC, CE, ROHS, ISO9001 |
| AC Voltage:: | Any Voltage Between 220V-760V On Request | Efficiency:: | IE1, IE2 |
1. good quality
2. copper
3. manufacture factory
4. Competitive price
Description of product

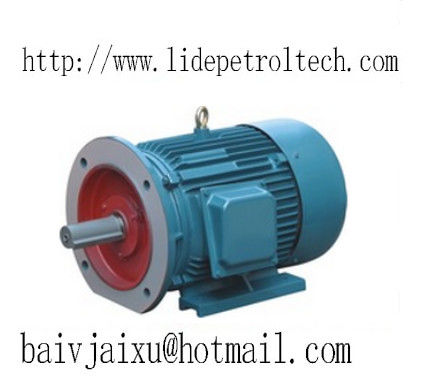

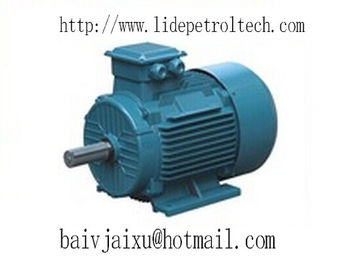

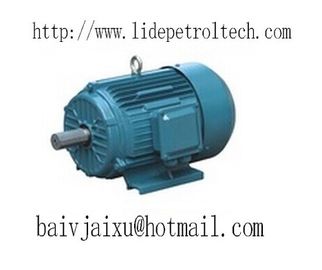

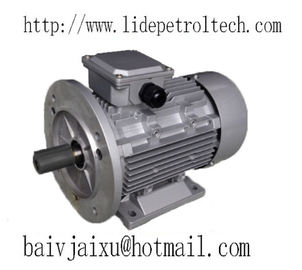

Y2 Series Three Phase AC Electric Motor
1, Frame Size: 63-300 MM;
2, Rated Output: 0.12—15 KW;
3, Rated Voltage: 380 V or to be your request;
4, Rated Frequency: 50 Hz / 60 Hz;
5, Poles: 2 / 4 / 6 / 8 / 10
6, Speed: 590 —2980 r/min
7, Ambient Temperature: -15°C—40°C
8, Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;
9, Mounting: B3; B35; B34; B14; B5; V1;
10, Current: 1.5—65 A (AC);
11, Duty: continuous (S1);
12, Insulation Class: F;
13, Protection Class: IP54 / IP55;
14, Cooling Method: ICO 141 Standards;
15, Altitude: No more than 1,000 meters above sea level;
16, Packing: 1pc in a Strong carton several cartons on a Pallet or Plywood case.
