ZW Series LPG Compressor

ZW Series LPG Compressor

ZW Series LPG Compressor

Product Details:

Place of Origin: Zhejiang,China
Brand Name: Lide
Model Number: ZW Series LPG Compressor

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit/Units
Packaging Details: Carton
Delivery Time: 7-10days
Contact Now
Detailed Product Description

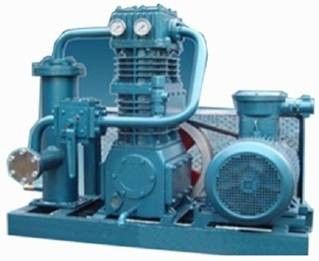

ZW Series LPG Compressor

ZW (CZW) series of liquefied petroleum gas recycle compressor is vertical, single acting, air-cooled, oil-free lubrication, reciprocating piston unit. This series compressor cylinder & packing components are oil-free to ensure the purity of its working medium. Crankshaft, connecting rod, crosshead components are pressure lubrication (splash lubrication) to ensure the reliability of lubrication. Excellent complement, satisfied performance, light weight, small occupying area, more compressing ratio, smooth running, long service life of spare parts, simple operation, reliability and easy maintenance. ZW series compressors have both fixed or movable types; both normal atmosphere (0.1~1.5MPa) and high pressure (1.6~2.4MPa) to meet different requirements of customers.

ZW Series LPG Compressor

LPG Compressor

Applications

It is suitable for working in large, middle and small LPG storages, conveying and distribution stations, bottle filling stations, gasification stations, gas mixing stations and tank vehicle loading and has the functions of vehicle loading, unloading, bottle filling, bottle emptying, conveying, residue removal and residual gas recycling and it can be also used in the processes of other petrol-industries.

ZW Series LPG Compressor

LPG Mobile Compressor

Technical Specification

Model

ZW-0.4/ 10-16

ZW-0.5/ 10-16

ZW-0.6/ 10-16

ZW-0.8/ 10-16

ZW-1.0/ 10-16

ZW-1.3/ 10-16

ZW-1.6/ 10-16

ZW-20/ 10-16

Nominal Capacity M3/Min

0.4

0.5

0.6

0.8

1.0

1.3

1.6

2.0

Delivery Pressure

Mpa

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

Intake Pressure

Mpa

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

Intake Temperature

≤40

≤40

≤40

≤40

≤40

≤40

≤40

≤40

Delivery Temperature

≤110

≤110

≤110

≤110

≤110

≤110

≤110

≤110

Speed r/min

750

980

775

550

750

850

1000

750

Lubricant Temperature

70

70

70

70

70

70

70

70

Ex-proof Motor Power

5.5kw

7.5kw

7.5kw

11kw

15kw

18.5kw

22kw

30kw
