Oil Submersible Turbine Pump

Oil Submersible Turbine Pump

Oil Submersible Turbine Pump

Product Details:

Place of Origin: Zhejiang,China
Brand Name: Lide
Model Number: LDQ-240

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit/Units
Packaging Details: carton
Delivery Time: 7-10days
Payment Terms: T/T, L/C or Cash
Supply Ability: 1000 Unit/Units per Month
Contact Now
Detailed Product Description
Usage: Oil Power: Electric

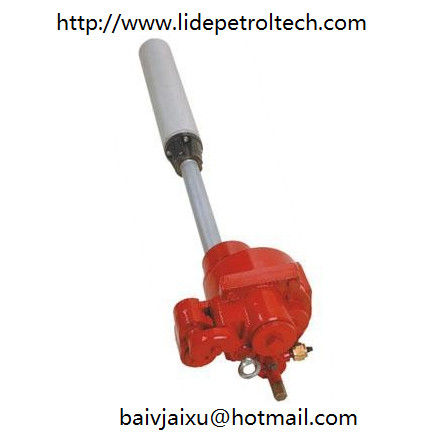

LDQ-240 Submersible Turbine Pump

Oil Submersible Turbine Pump

LDQ-240 Submersible
Turbine Pump









Description

A. Best performance, long time service, lower noise
B. Easy to install and service. Quick, simple and safe electrical
connections
C. Manifold allows for vertical or horizontal discharge
D. Save time, lower service costs
E. Built with check valve, by pass valve, vacuum valve
F. For diesel, gasoline, kerosene, etc.
G. Vapor-free, suction head longer than suction pump.

 Technical Specification

 Max Flow Rate:

240L/min
 Rotating Speed.: 2820 RPM
 Voltage: 220V,50Hz/380V,50Hz
 Current: 9A
 Power: 1.1Kw/1.5H
 Ex-proof Class: IP×6
 Fixation Thread: BSPF/NPT4"
 Inlet: BSPF/NPT1 1/2"
 Outlet: NPT2"
 Adjustable Pressure: 21KPa-207KPa
 Factory Pressure Range: 79KPa-93KPa
 Working Pressure: ＞34KPa

 Rating Pressure:

0.1MPa

 Package Data

 Package:

1pc/2cartons

 Net Weight:

55 kgs
 Gross Weight:
58 kgs
 Dimension: 380×310×380mm



810×210×210mm





Construction
Oil Submersible Turbine Pump
