Water Flow Meter, Kerosene Gas Flow Meter, Oil Meter

Water Flow Meter, Kerosene Gas Flow Meter, Oil Meter

    • Water Flow Meter, Kerosene Gas Flow Meter, Oil Meter
    • Water Flow Meter, Kerosene Gas Flow Meter, Oil Meter
    • Water Flow Meter, Kerosene Gas Flow Meter, Oil Meter
  • Water Flow Meter, Kerosene Gas Flow Meter, Oil Meter

    Product Details:

    Place of Origin: Zhejiang,China
    Brand Name: Lide
    Model Number: FM

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces
    Packaging Details: Carton
    Delivery Time: 3~5 days
    Supply Ability: 2000pcs/month
    Contact Now
    Detailed Product Description



    FM Series Flow Meter





    Water Flow Meter, Kerosene Gas Flow Meter, Oil Meter

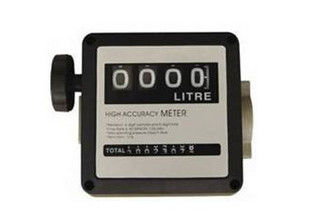

    FM-120L Flow Meter

    FM-120L Flow Meter

    FM-120L Flow Meter is to measure the exact quantity of the dispensed fuel. They are designed for noncommercial use Only. These flow meters are reliable, inexpensive, easy to install and simple to calibrate on the workplace.Aluminum metering chamber, 1” thread connection.Mechanical readout device with rotating wheels. 4 digitals subtotals can be set to zero, 8 digital total readouts can not. FM-30 Flow Meter, 3 digits, 6 total digits.

    Water Flow Meter, Kerosene Gas Flow Meter, Oil Meter

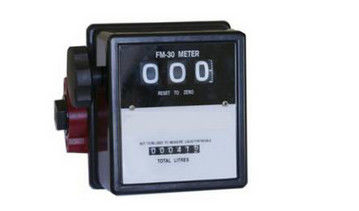

    FM-30 Flow Meter

      Technical Specification

      Model

    FM-120L

    FM-30

      Measurement

    Liter/ Gallon

    Liter/ Gallon

      Max.Pressure

    3 Bar

    3 Bar

      Flow Rate:

    20L-120L/min

    20L-120L/min

      Inlet&Outlet

    BSPF/NPT 1"

    BSPF/NPT 1”

      Precision

    ±1%

    ±1%

    Water Flow Meter, Kerosene Gas Flow Meter, Oil Meter

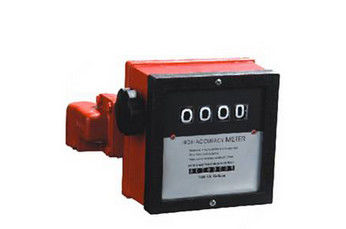

    FM-40G Flow Meter

    FM-40G Flow Meter

    FM-40G Flow Meter is designed for metering diesel fuel, Gasoline, kerosene, mineral spirits, solvent and heptane with the advantage of large, easy to read numbers, quick Reset knob, flexible flow ports, which can be positioned vertically or horizontally. Easy reset register indicates product use up to 999.9 gallons. The master totalizer registers up to 99999999 gallons.

      Technical Specification

      Model

    FM-40G

      Measurement

    Liter/Gallon

      Max. Pressure

    3 Bar.

      Flow Rate

    40PGM

      Inlet&Outlet

    BSPF/NPT 1“ or 1 ½”

      Precision

    ±1%



      Packaging Data

      Model

    FM-120L

    FM-40G

      Packaging

    6 pcs/carton

    2 pcs/carton

      Net Weight

    12Kgs

    6Kgs

      Gross Weight

    13Kgs

    7Kgs

      Size

    53×25×36cm

    49×28×22cm
