Target Mode Flow Meter

Product Details:

Place of Origin:	Zhejiang,China
Brand Name:	Lide
Model Number:	Target Mode Flow Meter

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Packaging Details:	wooden package
Delivery Time:	7-10 days/ as per quantity
Payment Terms:	L/C,T/T,Western Union

Contact Now

Detailed Product Description

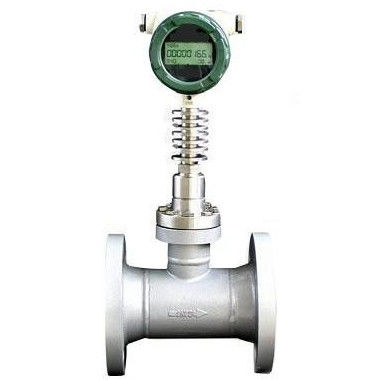

Target Mode Flow Meter

Flange Connection

Target Mode Flow Meter is pressure influence target mode flow meters which utilize the modern sensor and computer technology. It is with characteristics of anti-interfere, anti-impurity, portability and Reliability. They have been widely used in many fields of petroleum, chemical industry, energy, foodstuff, environment protection, water conservancy and so on.
Target Mode Asphalt Flow Meter is double-jacketed with heat conduction unit. It is typically to measure the flow of bitumen or asphalt. High sensitivity, able to measure very low velocity below 0.8m/s. No movable part, safe and reliable. Small pressure loss, only about 1/2△P of Standard Hole Board. Able to adopt hang weight method to test the flow meter.

Target Mode Flow Meter

Thread Connection

Medium	Liquid, Gas and Steam
Caliber	Pipe type 15~300mm		Clamp type 15~600mm			Insertion type 100~2000mm
Pressure	0.6~10MPa		0.6~42MPa			0.6~42MPa
Medium Temperature	-196℃~+450℃ ( Confirm the temperature range before purchase)
Precision	±0.2%	±0.5%		±1.0%	±1.5%		±2.5%
Range	1:3	1:5		1:10	1:10		1:10 (Steam)
Compensation	Temperature compensation; Pressure compensation
Repeatability	0.1%~0.08%
Power Supply	3.6V lithium battery, 24V DC
Output	LCD display, and 4~20mA, 0~10V, impulse or RS485 (Optional)
Material of tube	Carbon Steel；304；316L etc.
Explosion-Proof	ExiallCT4, ExiallBT4

Target Mode Flow Meter

Insertion Type

Heat Conduction Unit Construction:

Asphalt Flow Meter

Target Mode Flow Meter
